PLC Smart Light Controller

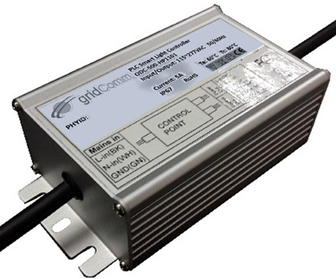

gridComm offers a state-of-the-art Power Line Communications Smart Light controller module, which is ideal and most suitable for transforming traditional street light installations into smart street light systems that are energy-aware and remotely managed and monitored over cloud-based management networks without replacing existing installed driver. Attaching the Smart Light Controller (SLC) module behind the existing light driver already installed is all that is required to make it "smart". The SLC is capable of controlling different luminaries eg. LED, Sodium Vapor and HID lamps up to 500W.
Features
-
li> Electronics Protection: Short-Circuit, Over-Heating, Over-Loading
- IP67 protection for outdoor and indoor
- Unique PHY_ID address to correspond with GIS information of streetlight on GUI map
- Support real-time data read-back such as power consumption, current, voltage, light status
- Support sending of system alerts to central management system
- Highly reliable compliant with worldwide lighting standards- CE, FCC, EN55015
- Self-adaptive link, auto-routing PLC network topology
Benefits
- Lower cost to upgrade traditional street lights into smart street lights without replacing existing light driver already installed
- Less energy usage by using automatic lighting schedules, hence reducing the carbon footprint
- Savings in operating and maintenance costs
- Efficient remote monitoring system, thus doing away with using surveillance vehicles to check for faulty lights
- Flexibility in mixing different lamp types and technologies
- Scalability and extendibility to support other applications such as traffic, weather, and motion monitoring
- Display of street light locations on a map for real-time control and monitoring.
Attaching the Smart Light Controller (SLC) module behind the existing light driver already installed is all that is required to make it "smart".
- Wide input power voltage: 115 ~ 277 VAC
- Input frequency: 47Hz to 63Hz
- Maximum light driver power support: 500W
- Maximum input current: 5A
- Standby power: less than1W
- Communication frequency:10KHz~500KHz
- Light Control Output Signal: 0~10V analog dimming, PWM compliant with IEC60929
- Metering Accuracy: less than 2%
- Harmonic content: less than 10%
- PLC Rx Sensitivity: -60dBV
- PLC Tx Signal Voltage Level under 1 ohm load: 2~ 8V
- Operating temperature range- -40 to 70 degrees Celsius
- Storage temperature range: -40 to +80 degrees Celsius
- Lightning protection- 4KV surge
Software content
Contact gridComm support
| Doc Number | Description | Date | Download |
|---|---|---|---|
| PB20001_00 | PB20001_00 _ODC-500-HP1101_Product_Brief | 11/04/2015 | Download |
