GPC-300-P

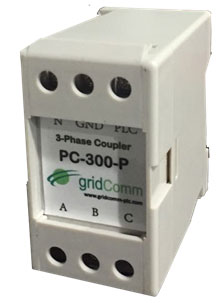

The gridComm 3-phase coupler PC-300-P is a passive module that couples Power Line Communication (PLC) signal over different phases of the power grid. It can be used to couple street light nodes, smart meters or other PLC nodes on a 3-phase network. It can also enable a gridComm PLC Module (without coupling circuitry) to directly communicate with other nodes on the three phase power line network.
The PC-300-P is housed in a plastic flame-retardant material casing. The dimensions of this case are 43mm x 71mm x 81mm. The casing provides a DIN-Rail mounting.
Features
- Connects directly to 3-Phase Low-Voltage AC power lines with L1 (Phase A), L2 (Phase B) and L3 (Phase C)
- Also connects with DC power lines
- Operating temperature: - 400C to 850C
- Voltage for L1 (phase A) to N, L2 (phase B) to N or L3 (phase C) to N: 0 VAC to 275VAC
- Size in mm: 43 W x 71 D x 81 H Weight: 240g
- Flame Retardant ABS casing with DIN Rail mounting
Benefits
- Provides convenient coupling of a 3-phase system
- Simple connections
Applications
- Smart metering and smart grid
- Street lighting control
- Industrial automation
- SCADA (Supervisory Control And Data Acquisition)
The gridComm 3-phase coupler PC-300-P is a passive module that couples Power Line Communication (PLC) signal over different phases of the power grid.Specification
Contact gridComm support
| Doc Number | Description | Date | Download |
|---|---|---|---|
| PB07061601-01 | Three-Phase_Coupler Product Brief | 07/06/2016 | N/A |
