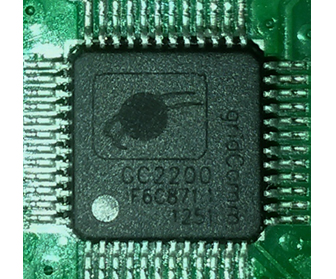

GC2200
GC2200 is a next generation OFDMA (Orthogonal Frequency Division Multiple Access) power line communication transceiver designed for networking applications on the Low and Medium Voltage power distribution networks. The GC2200 contains a complete packet data modem with a simple physical layer protocol that operates at data rates of up to 175Kbps utilizing 54 carrier groups into 18 independent channels. This structure provides the user complete flexibility in trade-offs between bitrate, sensitivity and multi-node network applications. When combined with a microcontroller (MCU) the GC2200 provides a flexible cost effective solution for data links and point-to-point, star or ad hoc networks. Interface to the MCU is a 10MHz serial peripheral interface (SPI) and interrupt request output. The MCU and software can scale according to the application needs.
Features
- Next generation OFDMA transceiver with 175kbps maximum data rate
- 54 carriers grouped into 18 independent OFDM channels allowing frequency division
- BPSK/QPSK selectable modulation
- Carrier frequency of 5 kHz to 500kHz
- Narrowband emulation and low frequency mode putting channels in CENELEC frequency range
- Programmable band in use (BIU) threshold for noise avoidance
- Received packets contain a RSSI (Receive Signal Strength Indication)
- Peak to average ratio minimization with changing carrier frequencies
- Independently programmable carrier transmission voltages in -3dB steps with power regulation
Benefits
- Cost effective OFDMA modem – up to 175kbps
- Up to 18 independent communication channels
- Selectable 54 carrier frequencies
- BPSK/QPSK selectable modulations for optimal performance
- Independently programmable carrier transmission power for power optimization
- Advanced Metering Infrastructure (AMI)
- Automated Meter Reading (AMR)
- Street lighting control
- Smart energy home area networking
- Home automation (HA)
- Building automation (BA)
- SCADA (Supervisory Control And Data Acquisition)
- Carrier frequency of 5 kHz to 500kHz
- Independently programmable carrier transmission voltages in -3dB steps with power regulation
- Scan Frequency tool to scan for best 18 carrier frequencies based on RSSI and Received Success Rate for up to 8 nodes.
- Noise Indicator tool to detect noise level for selected frequency channels.
- Debug tool to test success rate of communication links
