PLC-Enabled Digital Power Supply for Street Lights

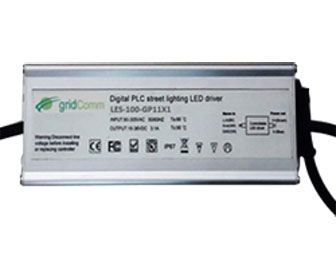

The PLC-enabled Digital Power Supply (DPS) is a state-of-the-art module consisting of a power driver integrated with gridComm's GC8800 module, which is based on gridComm GC2200, a proven robust OFDMA (Orthogonal Frequency Division Multiple Access) PLC transceiver chip. The DPS along with gridComm Master Light Controller GC1330/GC1338 and gridComm Street Light Management Software (SLMS), together form a complete Smart Street Light control and management system and it enables real-time control and automatic scheduling of switching on and off, and dimming levels of individual lights from a central location. The DPS also provides metering functions for real-time monitoring of operational status, power consumption, current, voltage, and power factor of individual street lights. Different luminary DPS options, such as LED, Sodium Vapor and Metal Halide, are available.
Features
- Direct Light Driver
- Auto Power Factor Correction: >0.95
- Electronics Protection: Short-Circuit, Over-Voltage, Over-Current Over-Heating, Over-Loading, Electrostatic protection
- IP67 protection for outdoor and indoor
- Support real-time data read-back such as power consumption, current, voltage, light status
- Support sending of system alerts to central management system
- Highly reliable compliant with worldwide lighting standards- CE, FCC
- Self-adaptive link, auto-routing PLC network topology
- Operating temperature range- -30 to 60 degrees Celsius
- Lightning protection- 4KV surge
Benefits
- Less energy usage by using automatic lighting schedules, hence reducing the carbon footprint
- Savings in operating and maintenance costs
- Efficient remote monitoring system, thus doing away with using surveillance vehicles to check for faulty lights
- Flexibility in mixing different lamp types and technologies
- Scalability and extendibility to support other applications such as traffic, weather, and motion monitoring
- Display of street light locations on a map for real-time control and monitoring
- Auto Power Factor Correction: >0.95
- Operating temperature range- -30 to 60 degrees Celsius
- Lightning protection- 4KV surge
- Scan Frequency tool to scan for best 18 carrier frequencies based on RSSI and Received Success Rate for up to 8 nodes.
- Noise Indicator tool to detect noise level for selected frequency channels.
- Debug tool to test success rate of communication links
| Description | Date | Download |
|---|---|---|
| PB_LFL-040-0XX-P_Product_Brief | 01/08/2016 | Download |
| PB_LFL-040-CP_Class_II_Product_Brief | 12/11/2019 | Download |
| PB_LFL-060-0XX-P_Product_Brief | 01/11/2016 | Download |
| PB_LFL-060-CP_Class_II_Product_Brief | 12/11/2019 | Download |
| PB_LFL-080-0XX-P_Product_Brief | 01/11/2016 | Download |
| PB_LFL-90-0XX-P_Product_Brief | 28/10/2016 | Download |
| PB_LFL-100-0XX-P_Product_Brief | 28/10/2016 | Download |
| PB_LFL-120-0XX-P_Product_Brief | 28/10/2016 | Download |
| PB_LFL-150-0XX-P_Product_Brief | 27/10/2016 | Download |
| PB_LFL-185-0XX-P_Product_Brief | 27/10/2016 | Download |
